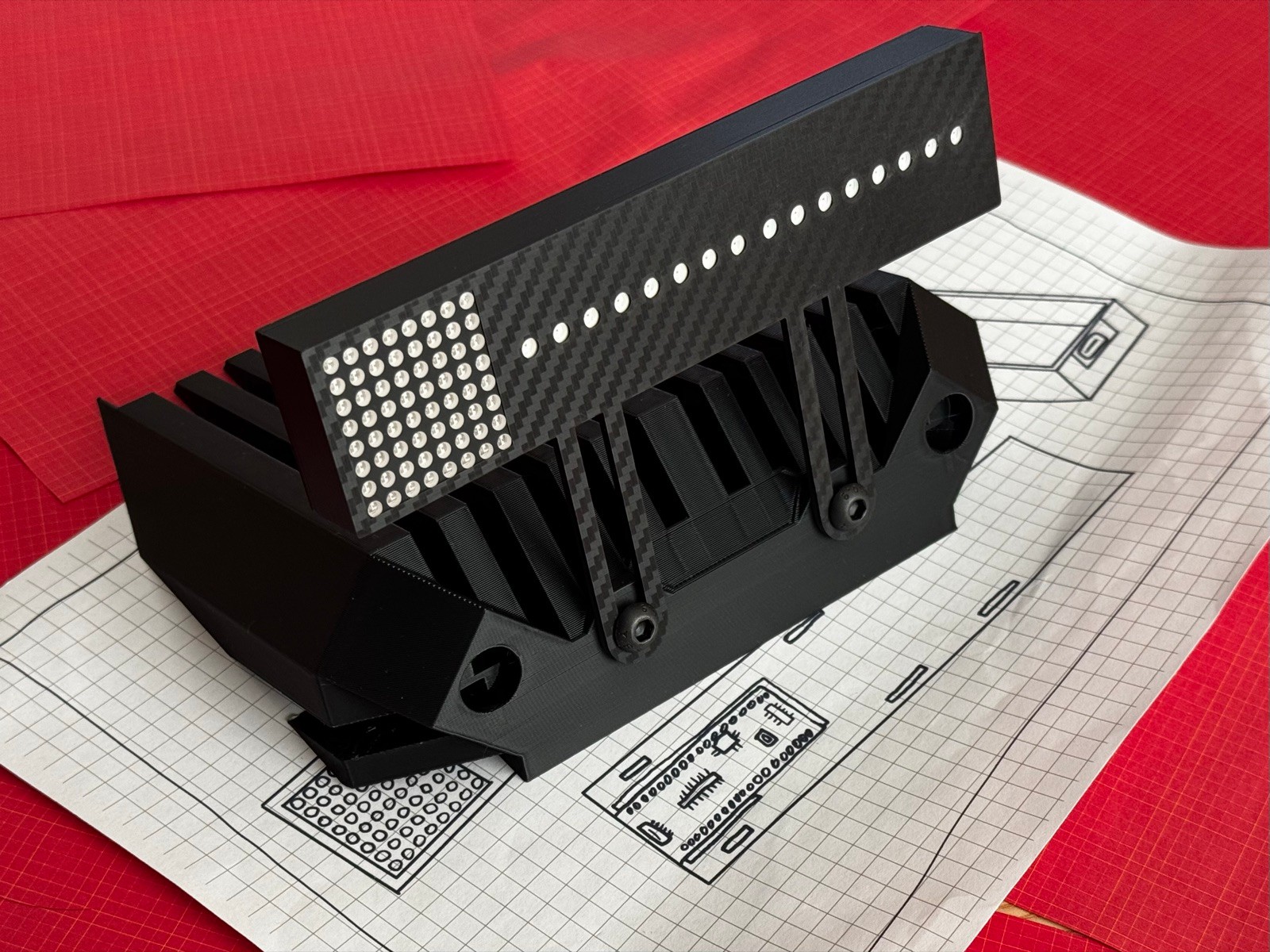

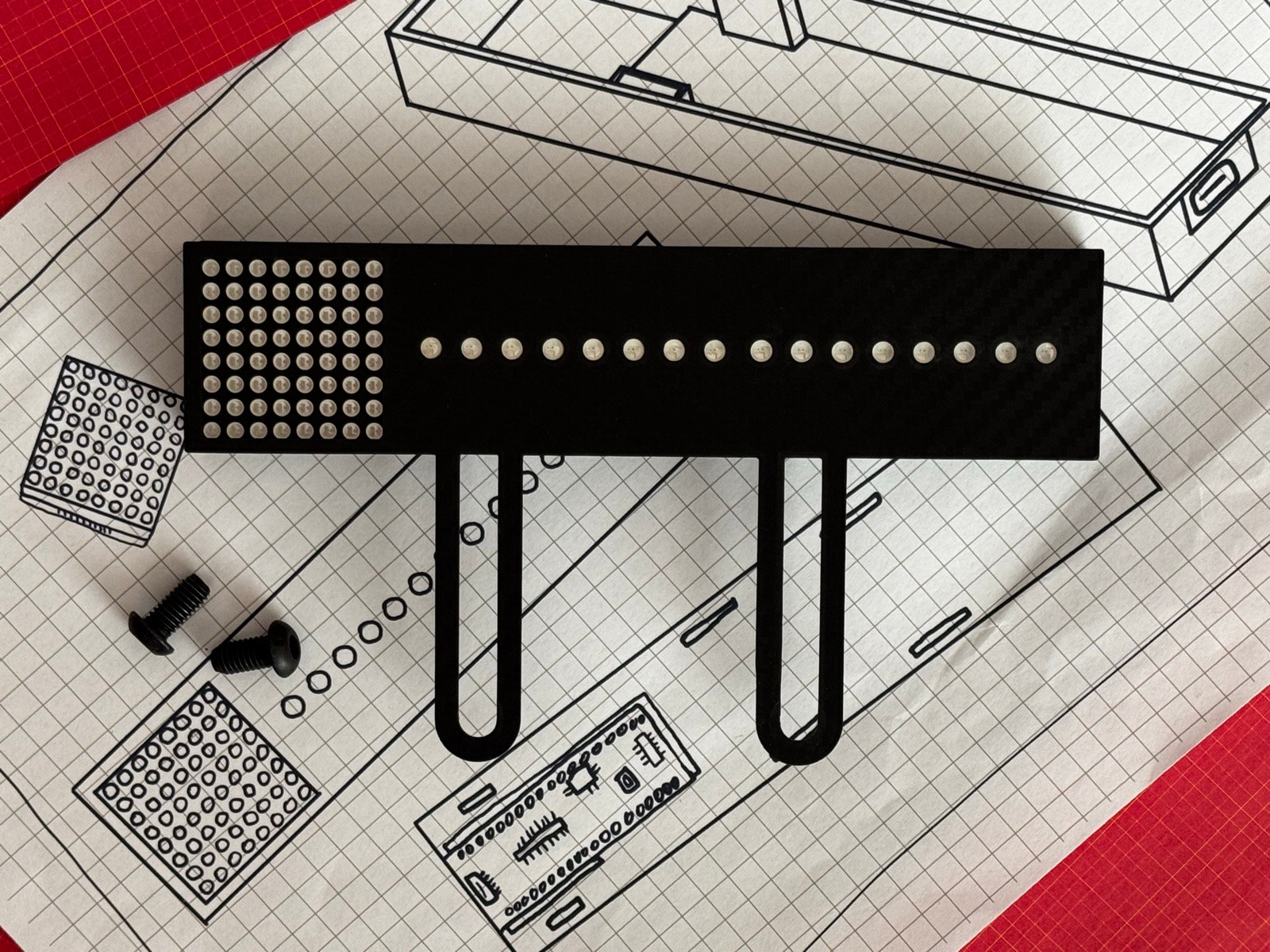

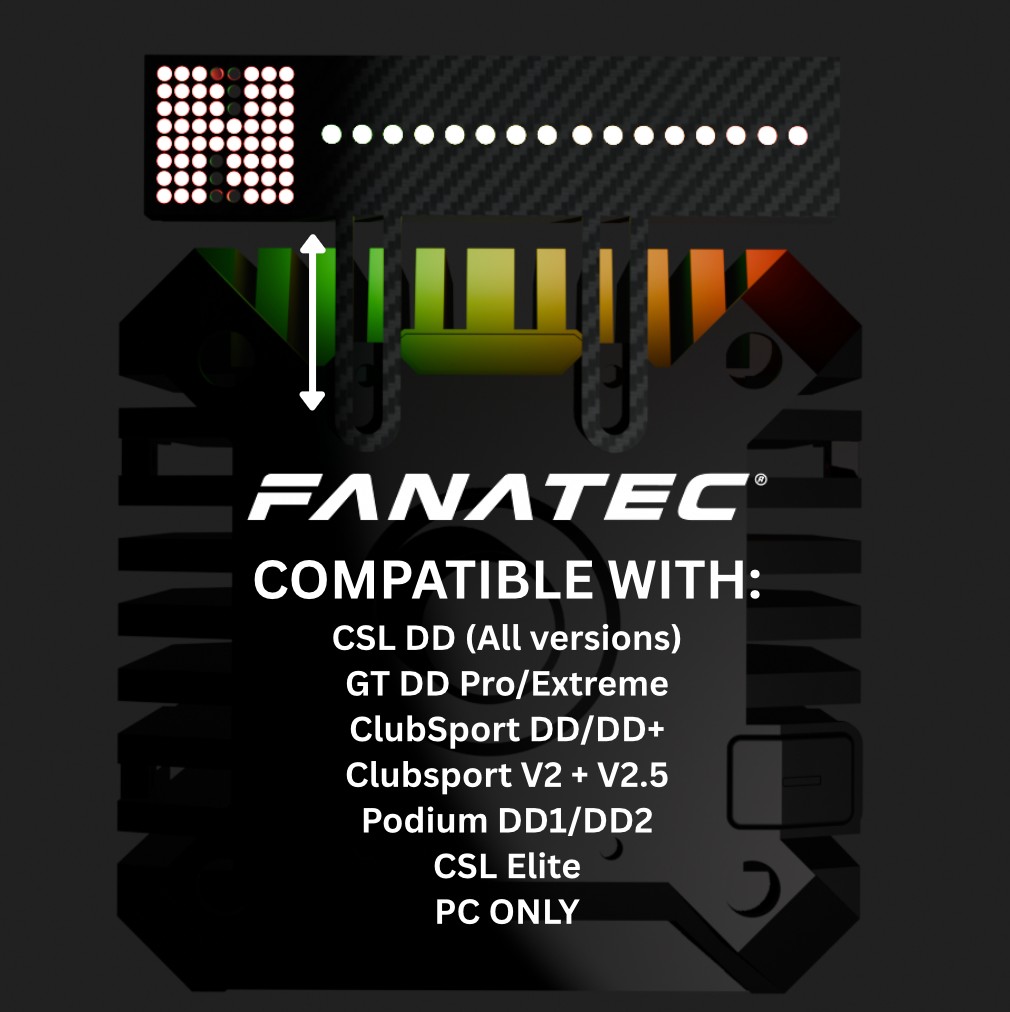

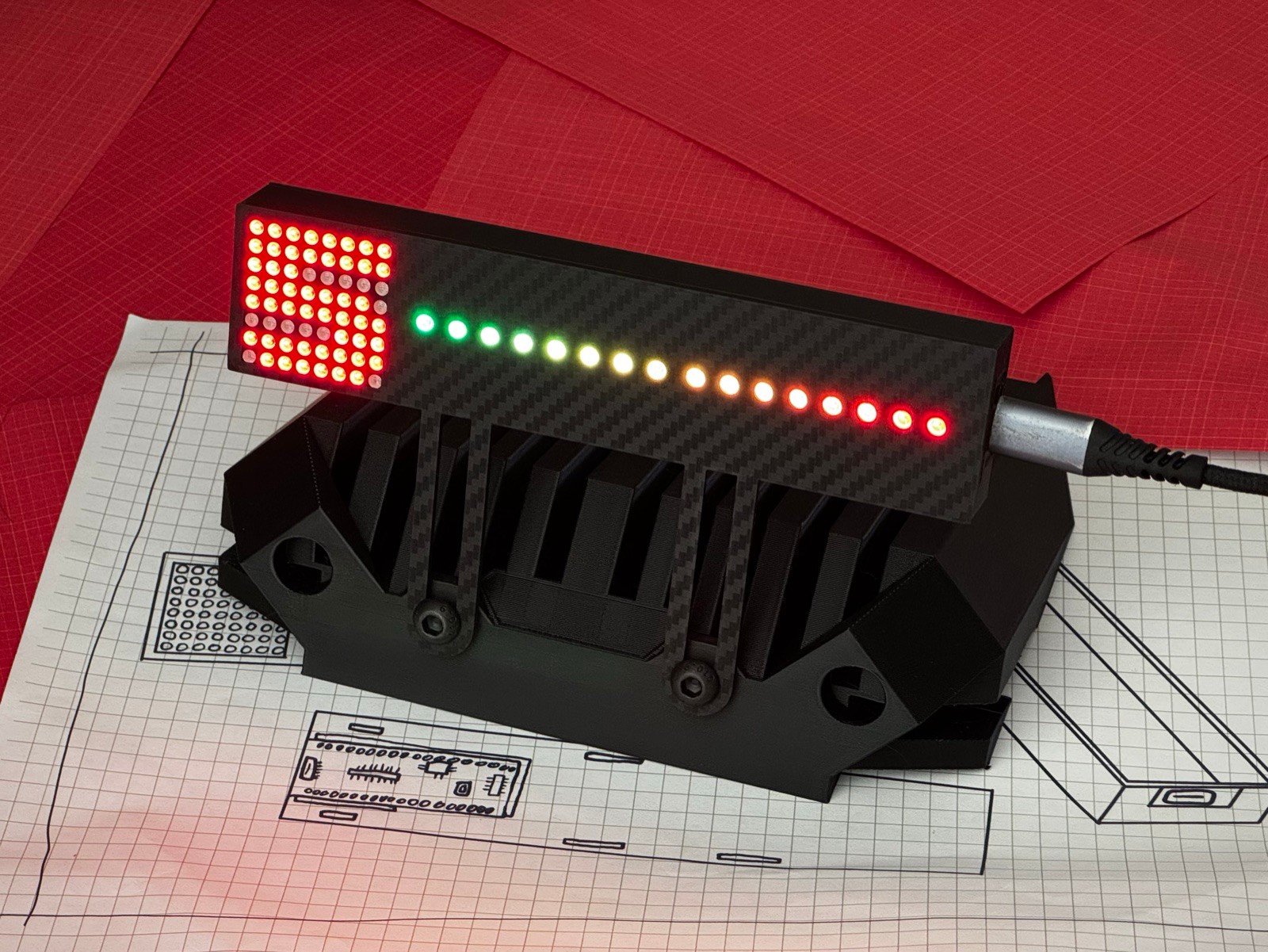

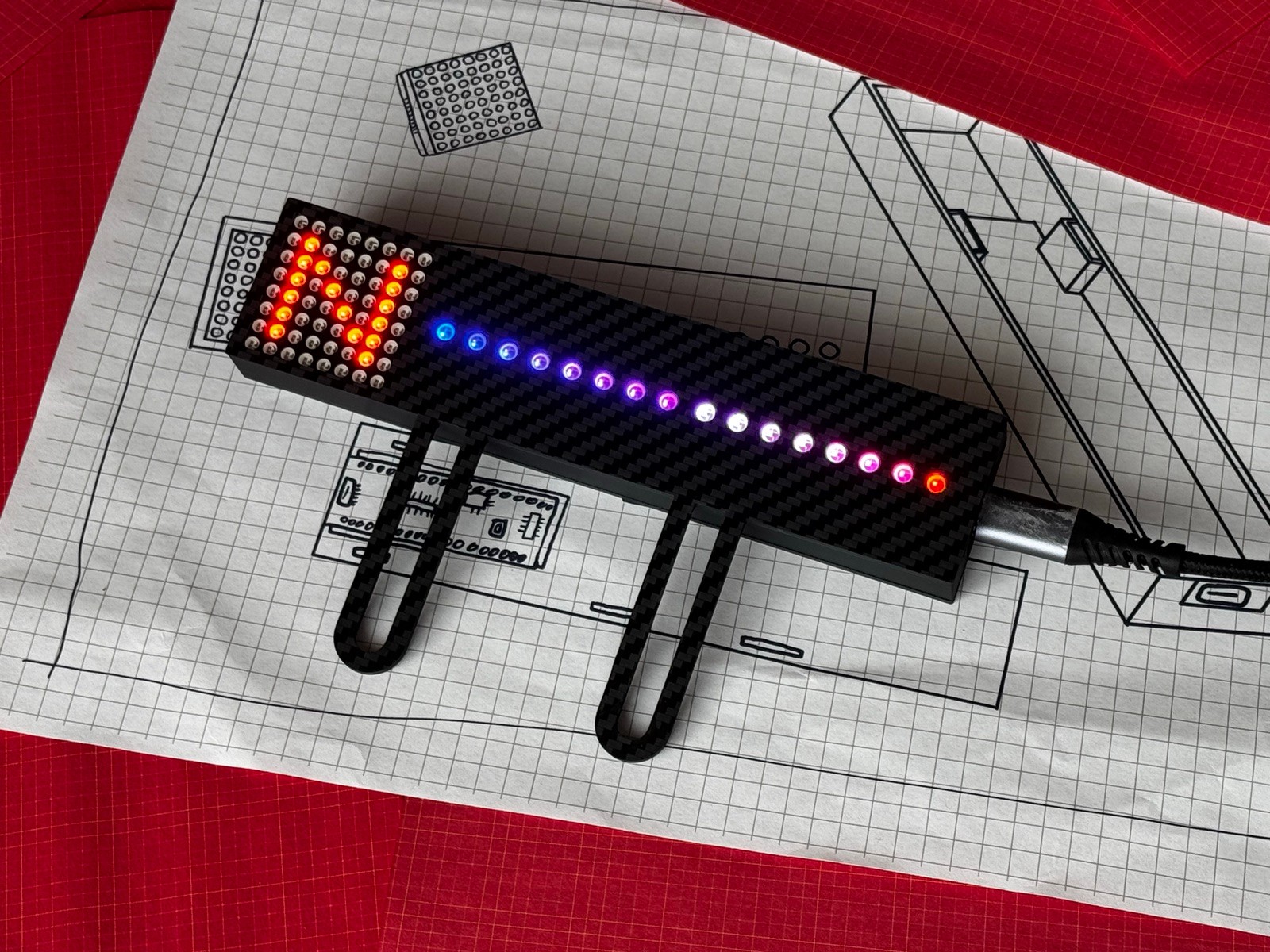

Gear Indicator + Shift Lights mounted on a Fanatec wheelbase bracket - lit red 8x8 gear matrix beside a green-to-red 16-LED rev bar in a carbon-fibre housing, USB-C connected, on oesimracing design blueprints Fanatec compatibility for the Gear Indicator + Shift Lights: CSL DD (all versions), GT DD Pro/Extreme, ClubSport DD/DD+, ClubSport V2 & V2.5, Podium DD1/DD2 and CSL Elite - PC only Unlit Gear Indicator + Shift Lights at an angle on its carbon-fibre Fanatec mount, showing the 8x8 gear matrix, the 16-LED rev strip and the carbon-fibre weave, on design blueprints Gear Indicator + Shift Lights on its carbon-fibre Fanatec mounting legs, gear matrix lit red with a custom blue-to-red rev sweep - fully customisable 24-bit ARGB LEDs, USB-C connected Unlit Gear Indicator + Shift Lights on its two carbon-fibre Fanatec mounting legs, shown with the two included M6 mounting bolts, on oesimracing design blueprints

Loading video…

Frequently asked questions

Is this device plug and play?

After setup, yes; Windows will instantly recognise the device when plugged in, you will need a free software called SimHub running in the background to send live game data. Don't worry - the setup is incredibly simple and you can watch a video tutorial or contact me for any assistance.

Which Fanatec wheelbases does it fit?

It bolts onto the standardised front peripheral mounting holes found on CSL DD (all versions), GT DD Pro/Extreme, ClubSport DD/DD+, ClubSport V2 & V2.5, Podium DD1/DD2, CSL Elite and any other Fanatec wheel with those holes (including older wheels). The legs use 56mm spacing. PC only.

Does it work with rally games like EA Sports WRC or DiRT Rally?

Yes. It runs off SimHub, which supports the major rally titles including EA Sports WRC, DiRT Rally 2.0 and Richard Burns Rally. Rally is where it really shines: with a sequential gearbox and blind stages, a physical, glanceable gear readout and shift lights are exactly what you want instead of glancing down at a screen mid-stage.

Does this device come with mounting hardware?

Yes - we include 2× M6 12mm bolts to screw the unit's legs directly into the front mounting points of your Fanatec wheelbase.

Does it come with a USB-C cable?

No, a USB-C cable is not included in the box. Please use a USB-C data transfer cable - a regular charging cable will not work.

Technical specifications

Dashboard type Physical - gear + rev readout, no second screen needed
Compatibility PC
Connector USB-C
Mounting Bolts directly onto the front peripheral holes of select Fanatec wheelbases
Fanatec fitment CSL DD (all versions) · GT DD Pro/Extreme · ClubSport DD/DD+ · ClubSport V2 & V2.5 · Podium DD1/DD2 · CSL Elite · any other Fanatec wheel with the standardised peripheral mounting holes (including older wheels)
Leg spacing 56mm
LEDs 16 × fully customisable 24-bit ARGB, with brightness control
Display MAX7219 8×8 red-only display, with brightness control
Material PLA

Gear Indicator + Shift Lights - For Fanatec Wheelbases

The physical sim racing dashboard - gear number and shift lights at a glance - now on Rev Gauge-style legs that bolt straight onto select Fanatec wheelbases. No desk space needed; it sits right on your rig.

*for select Fanatec wheelbases

£45.00 each In stock

Bulk pricing (Contact us)

Qty Per unit
1 £45.00
10+ £36.00 −20%
50+ £31.50 −30%

What's in the box

  • The Gear Indicator + Shift Lights unit on its Fanatec mounting legs
  • 2× M6 12mm bolts for the Fanatec mount

Please note: the USB-C data cable needed to connect is not included.

Supported games

Works with any PC sim racing or flight title SimHub supports, including:

  • Assetto Corsa
  • iRacing
  • Assetto Corsa Competizione
  • Automobilista 2
  • Le Mans Ultimate
  • DiRT Rally 2.0
  • EA Sports WRC
  • Richard Burns Rally
  • rFactor 2
  • Gran Turismo 7
  • F1 Series
  • BeamNG.drive
  • Microsoft Flight Simulator
  • DCS

…and many more - see all supported games →
